Purpose: The purpose of the PushPricedServiceOrderItems method is to send a fully priced VHC back to the autoVHC system, directly from the third party system.
Production: https://integrationfacade.autovhc.net/integrationlayerproxyapi.asmx
QA: https://qa-integrationfacade.autovhc.net/integrationlayerproxyapi.asmx
Development: https://dev-integrationfacade.wsautovhc.co.uk/integrationlayerproxyapi.asmx
Method: PushPricedServiceOrderItems

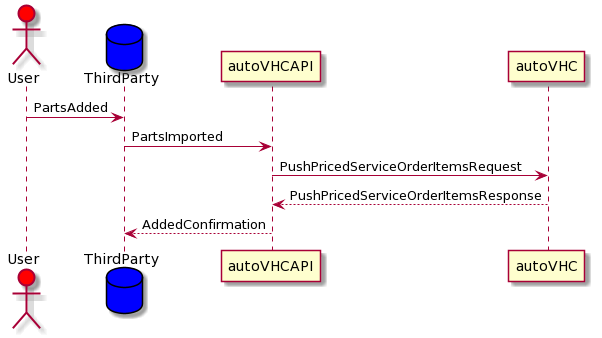

Sequence Diagram:
Request Structure:
Example Code: Click here to download
<PushPricedServiceOrderItems xmlns="http://www.wsautovhc.co.uk">
<Request>
<CurrencyCode xmlns="http://autovhc.co.uk/">string</CurrencyCode>
<Locale xmlns="http://autovhc.co.uk/">string</Locale>
<Username xmlns="http://autovhc.co.uk/">string</Username>
<Password xmlns="http://autovhc.co.uk/">string</Password>
<Sitecode xmlns="http://autovhc.co.uk/">string</Sitecode>
<ParametersCollection xmlns="http://autovhc.co.uk/">
<Parameters>
<DMSParameter>
<Name>string</Name>
<Value>string</Value>
</DMSParameter>
<DMSParameter>
<Name>string</Name>
<Value>string</Value>
</DMSParameter>
</Parameters>
</ParametersCollection>
<JobCardNumber xmlns="http://autovhc.co.uk/">string</JobCardNumber>
<ServiceOrder xmlns="http://autovhc.co.uk/">
<VHCDate>string</VHCDate>
<Make>string</Make>
<Model>string</Model>
<VIN>string</VIN>
<JobCardNumber>string</JobCardNumber>
<RegistrationNumber>string</RegistrationNumber>
<CustomerTitle>string</CustomerTitle>
<CustomerFirstName>string</CustomerFirstName>
<CustomerSurName>string</CustomerSurName>
<CustomerEmail>string</CustomerEmail>
<CustomerPostCode>string</CustomerPostCode>
<CustomerTelephoneNumber>string</CustomerTelephoneNumber>
<CustomerMobileNumber>string</CustomerMobileNumber>
<CustomerUUID>string</CustomerUUID>
<CustomerAddress1>string</CustomerAddress1>
<CustomerAddress2>string</CustomerAddress2>
<CustomerAddress3>string</CustomerAddress3>
<CustomerAddress4>string</CustomerAddress4>
<CustomerContactEmail>string</CustomerContactEmail>
<CustomerContactHomePhone>string</CustomerContactHomePhone>
<CustomerContactMail>string</CustomerContactMail>
<CustomerContactSMS>string</CustomerContactSMS>
<CustomerType>string</CustomerType>
<FirstRegistrationDate>string</FirstRegistrationDate>
<NextMotDate>string</NextMotDate>
<NextServiceDate>string</NextServiceDate>
<ServiceAdvisor>string</ServiceAdvisor>
<Workshop>string</Workshop>
<WorkRequired>string</WorkRequired>
<Mileage>string</Mileage>
<DateIn>string</DateIn>
<DateOut>string</DateOut>
<TimeIn>string</TimeIn>
<TimeOut>string</TimeOut>
<ServiceOrderItems>
<ServiceOrderItemTransferObject>
<PackageCode>string</PackageCode>
<DMSJobID>string</DMSJobID>
<ItemDescription>string</ItemDescription>
<Action>string</Action>
<Warranty>string</Warranty>
<VHCItemID>string</VHCItemID>
<VHCID>string</VHCID>
<ItemTypeID>string</ItemTypeID>
<ItemStatus>string</ItemStatus>
<Comments>string</Comments>
<Auth>string</Auth>
<Remind>string</Remind>
<LabourTime>string</LabourTime>
<LabourPrice>string</LabourPrice>
<IncVAT>string</IncVAT>
<VATRate>string</VATRate>
<Advisor>string</Advisor>
<SiteCode>string</SiteCode>
<TimeStamp>string</TimeStamp>
<CheckedItem>string</CheckedItem>
<Exclude>string</Exclude>
<IsWheel>string</IsWheel>
<CurrentTyreInfo>
<TyreMake>string</TyreMake>
<TyreRating>string</TyreRating>
<TyreSize>string</TyreSize>
<TyreVariety>string</TyreVariety>
<OuterDepth>string</OuterDepth>
<InnerDepth>string</InnerDepth>
<MiddleDepth>string</MiddleDepth>
<LoadIndex>string</LoadIndex>
<IsWinterTyre>boolean</IsWinterTyre>
</CurrentTyreInfo>
<Parts>
<PartTransferObject>
<MarketingCode>string</MarketingCode>
<Discount>string</Discount>
<OriginalPrice>string</OriginalPrice>
<VATRate>string</VATRate>
<CostItemID>string</CostItemID>
<PartID>string</PartID>
<PartNo>string</PartNo>
<PartDesc>string</PartDesc>
<Stock>string</Stock>
<PartPrice>string</PartPrice>
<Quantity>string</Quantity>
<QuantityRequired>string</QuantityRequired>
<LabourTime>string</LabourTime>
<LabourPrice>string</LabourPrice>
<FittedPrice>string</FittedPrice>
<Auth>string</Auth>
<Deleted>string</Deleted>
<VHCitemID>string</VHCitemID>
<TimeStamp>string</TimeStamp>
<SiteCode>string</SiteCode>
<BinLocation>string</BinLocation>
<BrandCode>string</BrandCode>
<ServiceMenuCode>string</ServiceMenuCode>
<Fluid>string</Fluid>
<Make>string</Make>
<Brand>string</Brand>
<Sundries>string</Sundries>
<DMSUniqueID>string</DMSUniqueID>
</PartTransferObject>
</Parts>
<Tyre />
<LabourLines>
<LabourTransferObject>
<DMSLabourCode>string</DMSLabourCode>
<ComplexityRate>string</ComplexityRate>
<VHCItemID>string</VHCItemID>
<Priceinctax>string</Priceinctax>
<costsheetlabourid>string</costsheetlabourid>
<timestampdt>string</timestampdt>
<sitecode>string</sitecode>
<description>string</description>
<discountrate>string</discountrate>
<priceexcltax>string</priceexcltax>
<quantity>string</quantity>
<timeamount>string</timeamount>
<taxrate>string</taxrate>
<deleted>string</deleted>
<LabourCodeSourceDMS>string</LabourCodeSourceDMS>
<ServiceMenuCode>string</ServiceMenuCode>
<DMSUniqueID>string</DMSUniqueID>
</LabourTransferObject>
</LabourLines>
<ImageUrls>
<string>string</string>
</ImageUrls>
<VideoUrls>
<string>string</string>
</VideoUrls>
<ServiceMenuCode>string</ServiceMenuCode>
<OrderType>string</OrderType>
</ServiceOrderItemTransferObject>
</ServiceOrderItems>
<MakeCode>string</MakeCode>
<ModelCode>string</ModelCode>
<AgreedEstimate>string</AgreedEstimate>
<VhcUrl>string</VhcUrl>
</ServiceOrder>
</Request>
</PushPricedServiceOrderItems>
PushPricedServiceOrderItemsRequest | ||||
PropertyName | PropertyType | Example | Description | Mandatory |
CurrencyCode | String | GBP | Code for local currency | Yes |
Locale | String | en-GB | Culture code | Yes |
Username | String | DMSADMIN | VHC Username | Yes |
Password | String | DMSPASSWORD | VHC Password | Yes |
Sitecode | String | 123456 | VHC Site Code | Yes |
VHCDate | String | 20120912 | Date the vehicle is due at the dealership (YYYYMMDD) | Yes |
Make | String | FORD | Vehicle manufacturer | Yes |
Model | String | FOCUS | Vehicle model | Yes |
VIN | String | WF0BXXWPRB6U02664 | Vehicle VIN or Chassis number | Yes |
JobCardNumber | String | 11522565 | DMS Work order number | Yes |
RegistrationNumber | String | FG58 AXY | Vehicle registration number | Yes |
CustomerTitle | String | Mr | Customer Title | No |
CustomerFirstName | String | Jamie | Customer First Name | No |
CustomerSurName | String | Lawrence-Jenner | Customer Surname | Yes |
CustomerEmail | String | jamie.jenner@autovhc.co.uk | Customer Email | No |
CustomerPostCode | String | WR13 6PZ | Customer PostCode | No |
CustomerTelephoneNumber | String | 01684 554477 | Customer Land Line Telephone Number | No |
CustomerMobileNumber | String | 07977 115478 | Customer Mobile/Cell Number | No |
CustomerUUID | String | 11544854 | DMS Unique customer identifier | No |
CustomerAddress1 | String | 12 Acacia Avenue | Customer Address Line 1 | No |
CustomerAddress2 | String | Great Malvern | Customer Address Line 2 | No |
CustomerType | String | RETAIL-001 | Customer Account category or type | No |
FirstRegistrationDate | String | 20081025 | Date vehicle first registered (YYYYMMDD) | No |
NextMotDate | String | 20121128 | Date of the next government vehicle inspection is due (YYYYMMDD) | No |
NextServiceDate | String | 20130528 | Date when next vehicle service is due (YYYYMMDD) | No |
ServiceAdvisor | String | JLJ | The DMS identification of the service advisor who will deal with the customer | No |
Workshop | String | MAIN | Workshop in which the vehicle will be inspected | No |
WorkRequired | String | 35,000 km service | Description of required work/reason for the booking | No |
Mileage | String | 1154458 | Last know odometer reading | No |
DateIn | String | 20120912 | Date the vehicle is due at the dealership (YYYYMMDD) | No |
DateOut | String | 20120912 | Date the vehicle is due at the dealership (YYYYMMDD) | No |
TimeIn | String | 91500 | Time the vehicle is due at the dealership (HH:MM:SS) | No |
TimeOut | String | 173000 | Time the vehicle is due at the dealership (HH:MM:SS) | No |
ServiceOrderItemTransferObject | String | (see below) | No | |
MakeCode | String | 56 | DMS Manufacturer Code | No |
ModelCode | String | 78 | DMS Model Code | No |
AgreedEstimate | String | 250 | Value quoted to the customer for completion of the work required | No |
EngineNumber | String | ENG123SDFTRE1 | Serial Number of Engine | No |
ServiceOrderItemTransferObject | ||||
PropertyName | PropertyType | Example | Description | Mandatory |
PackageCode | String | AB001 | The code to identify a package within a DMS or Parts Catalogue | Yes |
DMSJobID | String | No | ||
ItemDescription | String | Front Brakes | Service order line item description | Yes |
Action | String | 1 | Used by autoVHC 0=Followed up, 1=Open, 2=Dismissed | Yes |
Warranty | String | FALSE | Indicates the item is a warranty repair | Yes |
VHCItemID | String | 692554 | Service order line item unique ID | Yes |
VHCID | String | 12251 | Service Order ID | Yes |
ItemTypeID | String | 1 | Not required at present | Yes |
ItemStatus | String | 2 | 0= Green, 1=Amber, 2=Red indicates the condition of the service order line item | Yes |
Comments | String | Front pads worn 0.5mm | Technican comments about the item condition | Yes |
Auth | String | TRUE | Indicates the item has been authorised for repair by the customer | Yes |
Remind | String | FALSE | Whether or not the customer will be followed up about the item | Yes |
LabourTime | String | 1.5 | Total time for the repair, sum of timeamount for all Labour items associated with the item | Yes |
LabourPrice | String | 90.00 | Labour price for the repair | Yes |
IncVAT | String | FALSE | Not required at present | Yes |
VATRate | String | 20 | Tax rate 20=20 | Yes |
Advisor | String | 52658 | used by autoVHC only | Yes |
SiteCode | String | 909093 | Site Code, used to identify the record to a autovhc account | No |
TimeStamp | String | 41164.7055555556 | time stamp when the record was last changed | Yes |
CheckedItem | String | FALSE | used by autoVHC only | Yes |
Exclude | String | FALSE | Indicates the item was pre-identified by the customer prior to the VHC | Yes |
IsWheel | String | FALSE | Indicates the item is Wheel/Tyre | Yes |
CurrentTyreInfo | String | Please see below | Yes | |
Parts | PartTransferObject[] | Please see below) | No | |
LabourLines | LabourTransferObject[] | Please see below | No | |
CurrentTyreInfo | TyreInfoObject | (see TyreInfoObject) | No | |
Tyres | TyreTransferObjectExtended[] | (see TyreTransferObjectExtended) | No | |
ServiceMenuCode | String | 12345678 | Stores package code, for example from eCat, can be a comma separated array. | No |
FixedPackage | FixedPackageTransferObject[] | (see FixedPackageTransferObject) | No |
CurrentTyreInfo | ||||
PropertyName | PropertyType | Example | Description | Mandatory |
TyreMake | String | Bridgestone | The manufacturer of the tyre | No |
TyreRating | String | R | The rating of the tyre | No |
TyreSize | String | 135,80,130 | The tyre size | No |
TyreVariety | String | A | The priority order, A being the tyre being priced / sold | No |
OuterDepth | String | 5.6 | The remaining tread on the outside of the tyre in millimeters | No |
InnerDepth | String | 5.6 | The remaining tread on the inside of the tyre in millimeters | No |
MiddleDepth | String | 5.6 | The remaining tread on the middle of the tyre in millimeters | No |
LoadIndex | String | 120 | The load index of the tyre | No |
IsWinterTyre | Boolean | true | If the tyre is a winter tyre | No |
PartTransferObject | ||||
PropertyName | PropertyType | Example | Description | Mandatory |
MarketingCode | String | 464 | Ford MLI code | No |
Discount | String | 5 | Amount the unit part price has been discounted by (OriginalPrice – PartPrice) | No |
OriginalPrice | String | 50.00 | Original unit part price | Yes |
VATRate | String | 20 | Tax rate 20=20% | Yes |
CostItemID | String | 1123324 | Unique ID for the Item | No |
PartID | String | 4451458 | autoVHC Part Category | No |
PartNo | String | 1164485447-0090 | Part Number | Yes |
PartDesc | String | FRONT BRAKE DISCS | Part description | Yes |
Stock | String | True | True if in stock | Yes |
PartPrice | String | 45 | Unit price after discount applied | Yes |
Quantity | String | 20 | Number of parts in stock | Yes |
QuantityRequired | String | 2 | Number of parts required | Yes |
LabourTime | String | 0 | Not used | No |
LabourPrice | String | 0 | Not used | No |
FittedPrice | String | 90 | Total price (PartPrice * QuantityRequired) | Yes |
Auth | String | TRUE | Used internally – Not required yet by the DMS, subject to change | No |
Deleted | String | FALSE | Indicates if the part has been deleted | No |
VHCitemID | String | 692554 | ID of the VHCItem (ServiceOrderItemTransferObject) the part has been assigned to | No |
TimeStamp | String | 41164.6294328704 | Time stamp when the record was last changed | No |
SiteCode | String | 909093 | Site Code, used to identify the record to a autovhc account | No |
BinLocation | String | BIN A | Part location in the dealer’s part repostitory | No |
BrandCode | String | BTCS | Used to identify part brand. | No |
Fluid | Boolean | True | Controls a checkbox showing that the part is a fluid | No |
Make | String | Abarth | The would be the make of the vehicle | No |
Brand | String | F | The brand of the vehicle | No |
Sundries | Boolean | True | Controls a checkbox showing that the part is a sundry item | No |
DMSData | String (XML) | <CustomContainer><Custom>Custom Parts Data</Custom><PartInfo>Custom Parts Information</PartInfo></CustomContainer> |
Optional custom data. A single XML entry or a XML container with multiple entries. If there is no data the DMSData entry will not exist in the returned structure. | No |
LabourTransferObject | ||||
PropertyName | PropertyType | Example | Description | Mandatory |
DMSLabourCode | String | 58450022BPE | DMS Labour Code | No |
ComplexityRate | String | 90 | Hourly rate for the labour before any discount has been applied | Yes |
VHCItemID | String | 692554 | autoVHC unique ID for the service line item | No |
Priceinctax | String | 144 | Total price of labour with tax (timeamount * discountrate) + vat | Yes |
costsheetlabourid | String | 164458 | autuoVHC Unique Labour Line ID | No |
timestampdt | String | 41164.7055555556 | time stamp when the record was last changed | No |
sitecode | String | 909093 | Site Code, used to identify the record to a autovhc account | No |
description | String | FIT FRONT DISCS | Labour line description | No |
discountrate | String | 80.00 | The hourly rate with discount applied, if no discount applied then the value will be the same as the ComplexityRate | Yes |
priceexcltax | String | 120.00 | Total price of labour (timeamount * discountrate) | Yes |
quantity | String | 1 | Not required = default to 1 | No |
timeamount | String | 1.5 | Number of hours to carry out the task 1.5 hours represents 1hr 30mins | Yes |
taxrate | String | 20 | Tax rate 20=20% | Yes |
deleted | String | FALSE | Indicates if the line is deleted | No |
LabourCodeSourceDMS | String | TRUE | Indicates labour was priced from DMS. | No |
Response Structure:
Example Code: Click here to download
<PushPricedServiceOrderItemsResponse xmlns="http://www.wsautovhc.co.uk">
<PushPricedServiceOrderItemsResult>
<Message>string</Message>
<Success>boolean</Success>
</PushPricedServiceOrderItemsResult>
</PushPricedServiceOrderItemsResponse>
PushPricedServiceOrderItemsResponse | ||||
PropertyName | PropertyType | Example | Description | Mandatory |
Message | String | Success | Success or Failure message | Yes |
JobID | Int | 123456 | Unique Job ID | Yes |
Success | Boolean | True | True or False | Yes |
A failed response would show the below code:
<PushPricedServiceOrderItemsResponse xmlns="http://www.wsautovhc.co.uk">
<PushPricedServiceOrderItemsResult>
<Message>Unauthorized</Message>
<Success>false</Success>
</PushPricedServiceOrderItemsResult>
</PushPricedServiceOrderItemsResponse>
