autoVHC DMS Integration

Pricing VHC (GetServiceOrderByID)

Purpose: The purpose of the GetServiceOrderByID method is to pull a job that is either at C or A status back into the third party system with all VHC information.

Production: https://integrationfacade.autovhc.net/integrationlayerproxyapi.asmx

QA: https://qa-integrationfacade.autovhc.net/integrationlayerproxyapi.asmx

Development: https://dev-integrationfacade.wsautovhc.co.uk/integrationlayerproxyapi.asmx

Method: GetServiceOrderByID

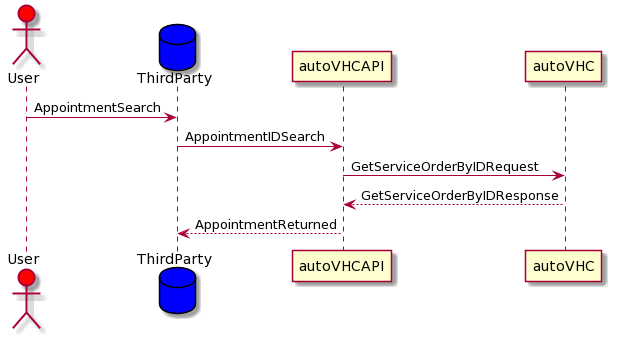

Sequence Diagram:

Request Structure:

Example Code: Click here to download

<GetServiceOrderByID xmlns="http://www.wsautovhc.co.uk">
	<request>
		<CurrencyCode xmlns="http://autovhc.co.uk/">string</CurrencyCode>
		<Locale xmlns="http://autovhc.co.uk/">string</Locale>
		<Username xmlns="http://autovhc.co.uk/">string</Username>
		<Password xmlns="http://autovhc.co.uk/">string</Password>
		<Sitecode xmlns="http://autovhc.co.uk/">string</Sitecode>
		<JobCardNumber xmlns="http://autovhc.co.uk/">string</JobCardNumber>
		<IncludeParts xmlns="http://autovhc.co.uk/">boolean</IncludeParts>
		<IncludeLabours xmlns="http://autovhc.co.uk/">boolean</IncludeLabours>
		<IncludeItemImageUrls xmlns="http://autovhc.co.uk/">boolean</IncludeItemImageUrls>
		<IncludeItemVideoUrls xmlns="http://autovhc.co.uk/">boolean</IncludeItemVideoUrls>
		<IncludeVhcUrl xmlns="http://autovhc.co.uk/">boolean</IncludeVhcUrl>
		<IntegrationId xmlns="http://autovhc.co.uk/">guid</IntegrationId>
		<IncludeCustomerInfo xmlns="http://autovhc.co.uk/">boolean</IncludeCustomerInfo>
	</request>
</GetServiceOrderByID>
GetServiceOrderByIDRequest
PropertyName PropertyType Example Description Mandatory
CurrencyCode String EUR ISO Currency code Yes
Locale String en-GB The .NET CurrentCulture.Name Yes
Username String DMSADMIN VHC Username Yes
Password String DMSPASSWORD VHC Password Yes
Sitecode String 123456 VHC Site Code Yes
JobCardNumber String 45847 DMS Package Code Yes
IncludeParts Boolean True Include any identified parts in the response No
IncludeLabours Boolean True Include any identified labours in the response No
IncludeItemImageUrls Boolean True Include links to images in the response No
IncludeItemVideoUrls Boolean True Include links to videos in the response No
IncludeVhcUrl Boolean True Include a link to the VHC in the response No
IntegrationId Guid intid123456 An identifier for the integration. Please note, autoVHC will provide this Yes
IncludeCustomerInfo Boolean True Include lany customer information in the response No

Response Structure:

Example Code: Click here to download

<GetServiceOrderByIDResponse xmlns="http://www.wsautovhc.co.uk">
	<GetServiceOrderByIDResult>
		<ServiceOrder>
			<VHCDate>string</VHCDate>
			<Make>string</Make>
			<Model>string</Model>
			<VIN>string</VIN>
			<JobCardNumber>string</JobCardNumber>
			<RegistrationNumber>string</RegistrationNumber>
			<CustomerTitle>string</CustomerTitle>
			<CustomerFirstName>string</CustomerFirstName>
			<CustomerSurName>string</CustomerSurName>
			<CustomerEmail>string</CustomerEmail>
			<CustomerPostCode>string</CustomerPostCode>
			<CustomerTelephoneNumber>string</CustomerTelephoneNumber>
			<CustomerMobileNumber>string</CustomerMobileNumber>
			<CustomerUUID>string</CustomerUUID>
			<CustomerAddress1>string</CustomerAddress1>
			<CustomerAddress2>string</CustomerAddress2>
			<CustomerAddress3>string</CustomerAddress3>
			<CustomerAddress4>string</CustomerAddress4>
			<CustomerContactEmail>string</CustomerContactEmail>
			<CustomerContactHomePhone>string</CustomerContactHomePhone>
			<CustomerContactMail>string</CustomerContactMail>
			<CustomerContactSMS>string</CustomerContactSMS>
			<CustomerType>string</CustomerType>
			<FirstRegistrationDate>string</FirstRegistrationDate>
			<NextMotDate>string</NextMotDate>
			<NextServiceDate>string</NextServiceDate>
			<ServiceAdvisor>string</ServiceAdvisor>
			<Workshop>string</Workshop>
			<WorkRequired>string</WorkRequired>
			<Mileage>string</Mileage>
			<DateIn>string</DateIn>
			<DateOut>string</DateOut>
			<TimeIn>string</TimeIn>
			<TimeOut>string</TimeOut>
			<ServiceOrderItems>
				<ServiceOrderItemTransferObject xsi:nil="true" />
				<ServiceOrderItemTransferObject xsi:nil="true" />
			</ServiceOrderItems>
			<NextCheckTachographDate>string</NextCheckTachographDate>
			<NextChangeCoolantDate>string</NextChangeCoolantDate>
			<NextChangeBrakeFluidDate>string</NextChangeBrakeFluidDate>
			<LastWorkshopVisitDate>string</LastWorkshopVisitDate>
			<LastServiceDate>string</LastServiceDate>
			<MileageLastWorkshopVisit>int</MileageLastWorkshopVisit>
			<MileageLastService>int</MileageLastService>
			<ServiceCode>string</ServiceCode>
			<EngineOil>string</EngineOil>
			<TransmissionOil>string</TransmissionOil>
			<PositionNumber>int</PositionNumber>
			<AxleLocation>string</AxleLocation>
			<AxleNumber>int</AxleNumber>
			<FirstTyreLocation>string</FirstTyreLocation>
			<SecondTyreLocation>string</SecondTyreLocation>
			<MakeCode>string</MakeCode>
			<ModelCode>string</ModelCode>
			<AgreedEstimate>string</AgreedEstimate>
			<VhcUrl>string</VhcUrl>
		</ServiceOrder>
		<Message>string</Message>
		<Success>boolean</Success>
	</GetServiceOrderByIDResult>
</GetServiceOrderByIDResponse>
GetServiceOrderByIDResponse
PropertyName PropertyType Example Description Mandatory
CurrencyCode String GBP Code for local currency Yes
Locale String en-GB Culture code Yes
Username String DMSADMIN VHC Username Yes
Password String DMSPASSWORD VHC Password Yes
Sitecode String 123456 VHC Site Code Yes
VHCDate String 20120912 Date the vehicle is due at the dealership (YYYYMMDD) Yes
Make String FORD Vehicle manufacturer Yes
Model String FOCUS Vehicle model Yes
VIN String WF0BXXWPRB6U02664 Vehicle VIN or Chassis number Yes
JobCardNumber String 11522565 DMS Work order number Yes
RegistrationNumber String FG58 AXY Vehicle registration number Yes
CustomerTitle String Mr Customer Title No
CustomerFirstName String Jamie Customer First Name No
CustomerSurName String Lawrence-Jenner Customer Surname Yes
CustomerEmail String jamie.jenner@autovhc.co.uk Customer Email No
CustomerPostCode String WR13 6PZ Customer PostCode No
CustomerTelephoneNumber String 01684 554477 Customer Land Line Telephone Number No
CustomerMobileNumber String 07977 115478 Customer Mobile/Cell Number No
CustomerUUID String 11544854 DMS Unique customer identifier No
CustomerAddress1 String 12 Acacia Avenue Customer Address Line 1 No
CustomerAddress2 String Great Malvern Customer Address Line 2 No
CustomerType String RETAIL-001 Customer Account category or type No
FirstRegistrationDate String 20081025 Date vehicle first registered (YYYYMMDD) No
NextMotDate String 20121128 Date of the next government vehicle inspection is due (YYYYMMDD) No
NextServiceDate String 20130528 Date when next vehicle service is due (YYYYMMDD) No
ServiceAdvisor String JLJ The DMS identification of the service advisor who will deal with the customer No
Workshop String MAIN Workshop in which the vehicle will be inspected No
WorkRequired String 35,000 km service Description of required work/reason for the booking No
Mileage String 1154458 Last know odometer reading No
DateIn String 20120912 Date the vehicle is due at the dealership (YYYYMMDD) No
DateOut String 20120912 Date the vehicle is due at the dealership (YYYYMMDD) No
TimeIn String 91500 Time the vehicle is due at the dealership (HH:MM:SS) No
TimeOut String 173000 Time the vehicle is due at the dealership (HH:MM:SS) No
MakeCode String 56 DMS Manufacturer Code No
ModelCode String 78 DMS Model Code No
AgreedEstimate String 250 Value quoted to the customer for completion of the work required No
EngineNumber String AB12345 The engine’s identifier number No
CustomerNotes String Front Brakes making knocking noise Any additional information provided by the customer No

A failed response would show the below code:

<GetServiceOrderByIDResponse xmlns="http://www.wsautovhc.co.uk">
	<GetServiceOrderByIDResult>
		<Message xmlns="http://autovhc.co.uk/">Unauthorized</Message>
		<Success xmlns="http://autovhc.co.uk/">false</Success>
	</GetServiceOrderByIDResult>
</GetServiceOrderByIDResponse>
