Request Structure:
<SearchParts xmlns="http://autovhc.co.uk/">
<Request>
<Locale>string</Locale>
<JobCardNumber>string</JobCardNumber>
<CustomerID>string</CustomerID>
<LocationCode>string</LocationCode>
<PartCriteria>
<PartNo>string</PartNo>
<PartDesc>string</PartDesc>
<Quantity>string</Quantity>
</PartCriteria>
<ParametersCollection>
<Parameters>
<DMSParameter xsi:nil="true"/>
<DMSParameter xsi:nil="true"/>
</Parameters>
</ParametersCollection>
<WildCardSearch>boolean</WildCardSearch>
</Request>
</SearchParts>
</soap:Body>
</soap:Envelope>
Node Information:
Node Name: <JobCardNumber>
Example Input: TESTJOB1234
Where to view input: Current VHC or Current VHC -> Edit VHC
Node Name: <LocationCode>
Example Input: 01
Where to view input: Admin -> Site -> Site Settings -> Integration Settings

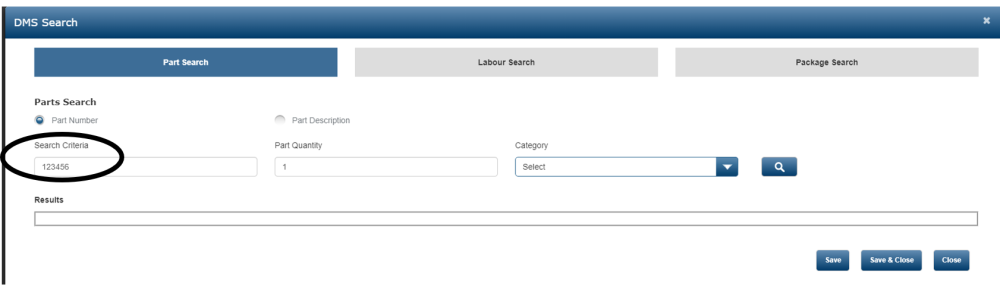

Node Name: <PartNo>
Example Input: 123456
Where to view input: Current VHC -> Price Parts -> Click Part -> Search Via DMS

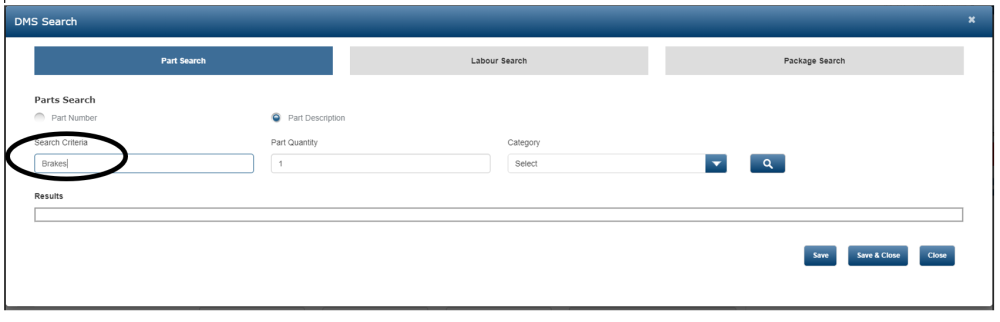

Node Name: <PartDesc>
Example Input: Brakes
Where to view input: Current VHC -> Price Parts -> Click Part -> Search Via DMS

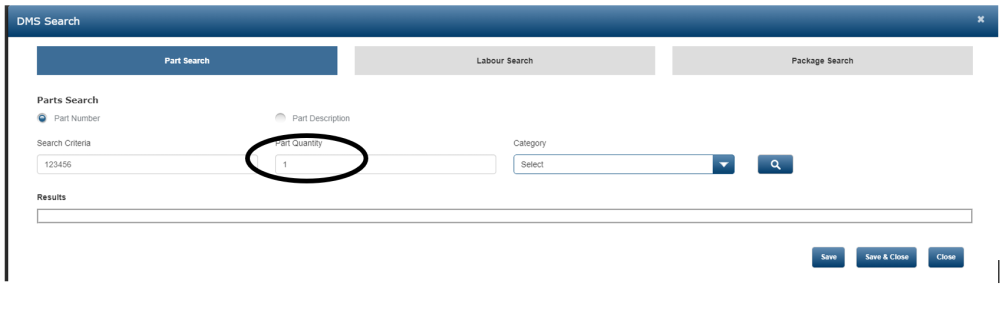

Node Name: <Quantity>
Example Input: 1
Where to view input: Current VHC -> Price Parts -> Click Part -> Search Via DMS
Response Structure:
<SearchPartsResponse xmlns="http://autovhc.co.uk/">
<SearchPartsResult>
<Message>Call successful</Message>
<Success>true</Success>
<Locale>en-GB</Locale>
<CurrencyCode>GBP</CurrencyCode>
<PartsCollection>
<PartTransferObject>
<MarketingCode>0</MarketingCode>
<Discount>0</Discount>
<OriginalPrice>110</OriginalPrice>
<VATRate>20.00</VATRate>
<CostItemID />
<PartNo>1763677</PartNo>
<PartDesc>Pads</PartDesc>
<Stock>true</Stock>
<PartPrice>110</PartPrice>
<Quantity>8</Quantity>
<QuantityRequired>1</QuantityRequired>
<LabourTime>0.00</LabourTime>
<LabourPrice>0.00</LabourPrice>
<FittedPrice>110</FittedPrice>
<TimeStamp>09/27/12</TimeStamp>
<SiteCode>909022</SiteCode>
<BinLocation>0</BinLocation>
</PartTransferObject>
</PartsCollection>
<AdditionalRecords>false</AdditionalRecords>
</SearchPartsResult>
</SearchPartsResponse>
